Embedded analytics JS

Embedded analytics JS lets you embed Metabase entities like questions, dashboards, or even the query builder into your own application using customizable components.

Embedded Analytics JS is a JavaScript library built on top of Metabase’s Embedded Analytics React SDK. But it does not require using React or setting up full SDK embedding. Unlike with interactive embedding, where you embed the entire Metabase app in an iframe, Embedded Analytics JS lets you choose from a set of predefined components like a single chart, a dashboard with optional drill-through, or query builder, and customize those components.

Embedded Analytics JS uses JWT or SAML to authenticate people and automatically apply the right permissions.

Currently you can choose to embed:

• A dashboard
• A question (chart). You can embed both questions built with the query builder and questions built with SQL.
• Full graphical query builder to enable people to build their own charts and explorations.

Quickstart

1. Enable Embedded Analytics JS

1. In Metabase, go to Admin Settings > Embedding > Modular embedding.
2. Toggle on Embedded Analytics JS.
3. Under Cross-Origin Resource Sharing (CORS), add the URLs of the websites where you want to embed Metabase (such as https://*.example.com). For testing embeds, you can use localhost which is always included in CORS policy.

2. Create a new embed

1. In Metabase, click on + New button in top right corner and select Embed. Note that this will only be visible to admins.
2. Choose the type of entity to embed. Currently the available types are dashboard, question, and exploration (which will embed the Metabase query builder).
3. Next, select the entity you want to embed.

Once you’ve selected what you want to embed, click Next to customize your embed.

3. Customize your embed

The exact customization options you see will depend on what type of entity you’re embedding. You’ll see a live preview of how the embed will look with your chosen options. Check out Customizing embeds for more details on customization options.

You’ll also be be able to pick brand, text, and background color used for all your embeds. To configure other colors (e.g. secondary colors, query builder colors etc), as well as font, you’ can specify a theme in your embed code snippet.

All the customization options you select in this interactive flow will be reflected in the parameter values in the embed code, so you’ll be able to adjust them later by editing the embed snippet.

Once you’re done customizing your embed, click “Next”.

4. Select authentication method

You’ll get a choice between “Existing Metabase session” and “Single sign-on (SSO)”.

• If you select Existing Metabase session, you’ll be able to preview your embeds as the user you’re currently logged into Metabase, and only in the same browser as your current session. Not all browsers are supported - we recommend using Google Chrome. To test out embedding in other contexts, you can use API keys instead. For production usage, use SSO.

• If you set up JWT in your Metabase instance, you’ll be able to select Single sign-on (SSO), see Set up SSO.

5. Add the embedding script into your app

Metabase will generate a code snippet that you can copy and paste into your app, see Embed code snippets for an example. You can later modify this code snippet to specify additional appearance options or change the behavior of some components.

Add the code snippet into your app, and refresh the page.

Embed code snippets

The code snippets to embed Metabase entities using Embedded Analytics JS should have three parts:

1. Loading the Embedded Analytics JS library from your Metabase instance.
2. Global configuration settings to be used for all embeds, like the URL of your Metabase instance, appearance themes, etc. See Configuring embeds.
3. Components for Metabase entities to be embedded, with their parameters. See Components.

Here’s an example of a script:

<!-- Load embedding library -->
<!-- REPLACE WITH YOUR METABASE URL HERE -->
<script defer src="https://your-metabase-url/app/embed.js"></script>
<script>
  function defineMetabaseConfig(config) {
    window.metabaseConfig = config;
  }
</script>

<!-- Embedding configuration -->
<script>
  defineMetabaseConfig({
    instanceUrl: "https://your-metabase-url",
    theme: {
      colors: {
        background: "#ffffff",
      },
    },
  });
</script>

<!--Embedded entities -->
<metabase-question question-id="1"></metabase-question>

<metabase-dashboard dashboard-id="2" with-title="false"></metabase-dashboard>

Note the defer attribute and the reference to your Metabase URL in the script that loads embed.js library.

If you’re embedding multiple entities on the same page, you only need to include the <script> tags once globally.

You can also generate the code snippet for Embedded Analytics JS interactively in Metabase through + New > Embed. Check out the Quickstart.

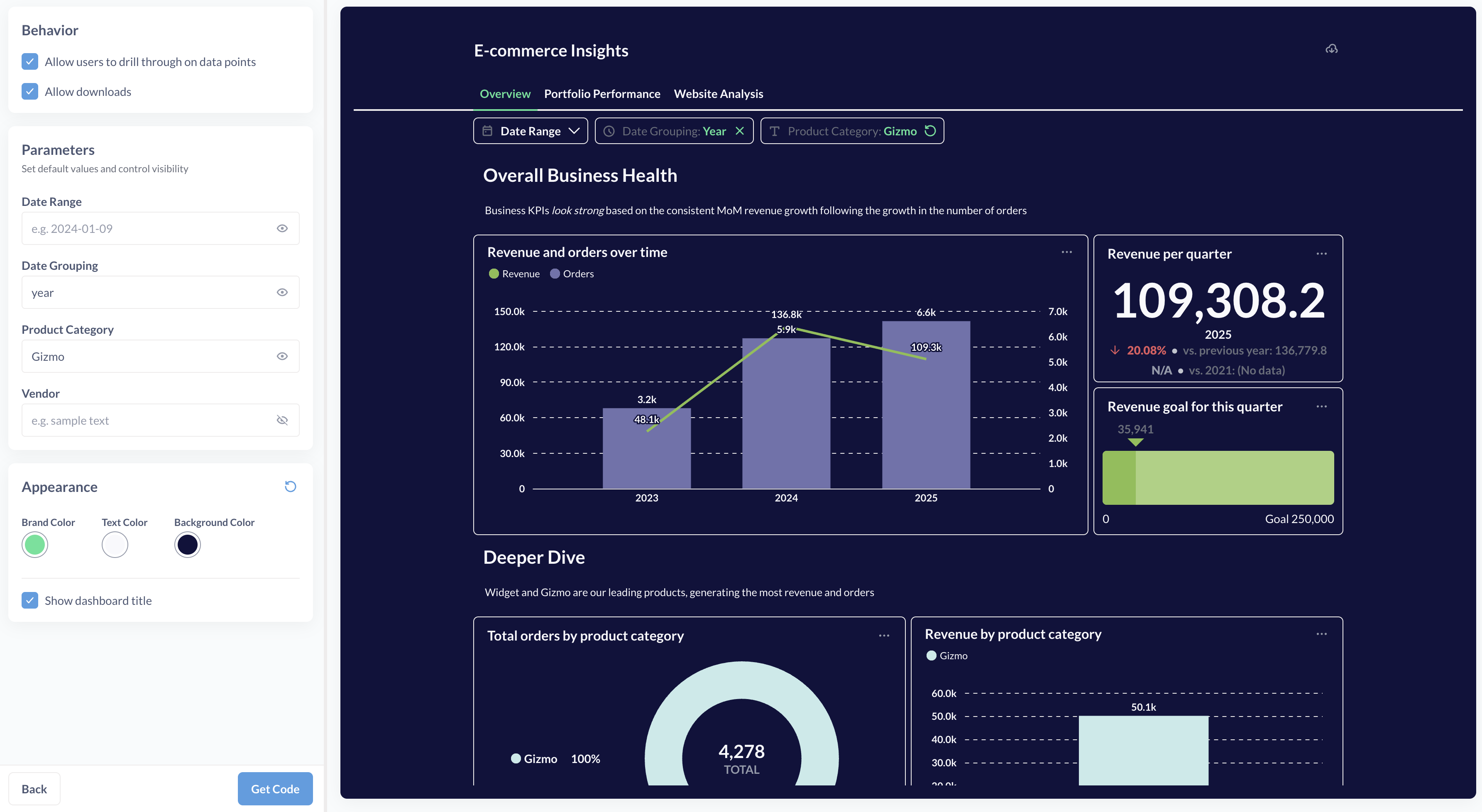

Customizing embeds

The exact customization options you see will depend on what type of entity you’re embedding.

When you’re creating a new embed using + New > Embed, you’ll see the following customization options in the interactive creation flow. These options correspond to parameters in components.

• Allow people to drill through on data points: determines whether people can interact with the chart (or charts on a dashboard). Interactivity includes drilling down to individual records from aggregated questions, filtering on click, zooming in, etc. Disabling drill-through for an embedded question also disables people’s ability to add filters and summaries.

• Allow downloads: determines whether people can download question results and save dashboards as PDFs.

• Allow people to save new questions. If you embed the query builder but disable this option, people can still do their own explorations, they just won’t be able to save them.

• Parameters: for dashboard filters, SQL variables, and time grouping parameters, you can add default values. Default values set here override the default values set at the dashboard or question level. For dashboard filters and parameters, you can choose whether to hide the parameter.

• Show title: what it says on the tin.

Configuring embeds

To define the configuration that applies to every embed on the page, use the defineMetabaseConfig() function. Its parameters include:

• instanceUrl: "https://your-metabase-url" (required): the URL of your Metabase instance, like https://youlooknicetoday.metabaseapp.com

• theme: {...} (optional): appearance options for the embeds.

• useExistingUserSession: true|false (optional, for development only) - lets you preview the embed locally using your Metabase admin account session. Only supported in Google Chrome.

• apiKey: mb_YourAPIKey (optional, for development only) - another way to preview embeds locally using an API key.

Theming

You can specify colors, fonts, spacing, and other appearance options using the theme parameter in your embed configuration.

For example, this code defines the font, color, and size for text, background colors, and colors for filters and summaries:

<script>
  defineMetabaseConfig({
    instanceUrl: "https://your-metabase-url",
    theme: {
      fontFamily: "Lato",
      fontSize: "16px",
      colors: {
        background: "#11123d",
        "text-primary": "#f9f9fc",
        brand: "#50e397",
        filter: "#7172AD",
        summarize: "#88BF4D",
      },
    },
  });
</script>

See appearance.

Authentication

Use existing user session to test embeds

Existing sessions can only be used for testing embeds locally. To make your embeds production-ready, you’ll need to implement SSO.

If you’re signed into Metabase, you can use that existing session cookie to preview and test your embeds. This only works in the same browser (we recommend Chrome) you’re using for your Metabase session (so it won’t work in Incognito mode).

Add useExistingUserSession: true to defineMetabaseConfig() in your embed code. Check out Configuring embeds.

<script>
  defineMetabaseConfig({
    instanceUrl: "https://your-metabase-url",
    useExistingUserSession: true,
  });
</script>

Note that this will not work in some browsers, or in incognito mode. We recommend using Chrome if you’d like to use existing Metabase sessions to test your embeds.

Use API keys to test embeds

API keys can only be used for testing embeds locally. To make your embeds production-ready or deploy them to another domain, you’ll need to implement SSO.

To use an API key to test your embeds:

1. Create an API key
2. Add apiKey: "YOUR_API_KEY" to defineMetabaseConfig():

<script>
  defineMetabaseConfig({
    instanceUrl: "https://your-metabase-url",
    apiKey: "mb_hopeyouhaveaniceday",
  });
</script>

API keys should only be used for testing with trusted people. Anyone with access to the front-end can grab the API key and use it to make requests against the Metabase API. For this reason, we only allow using API keys on localhost.

Set up SSO

SSO is required to embed in a domain other than localhost. You can use JWT or SAML SSO. To configure SAML, check out Authenticating with SAML. To configure JWT, follow the steps below.

1. In Metabase, configure JWT SSO.

2. In your app’s backend, add a new endpoint to handle authentication.

You’ll need to add a library to your backend to sign your JSON Web Tokens.

For Node.js, we recommend jsonwebtoken:

npm install jsonwebtoken --save

Next, set up an endpoint on your backend (like /sso/metabase) that uses your Metabase JWT shared secret to generate a JWT for the authenticated person. This endpoint must return a JSON object with a jwt property containing the signed JWT. For example: { "jwt": "your-signed-jwt" }.

This example code for Node.js sets up an endpoint using Express:

import express from "express";
import cors from "cors";
import session from "express-session";
import jwt from "jsonwebtoken";
import fetch from "node-fetch";

// Replace this with your Metabase URL
const METABASE_INSTANCE_URL = "YOUR_METABASE_URL_HERE";
// Replace this with the JWT signing secret you generated when enabling
// JWT SSO in your Metabase.
const METABASE_JWT_SHARED_SECRET = "YOUR_SECRET_HERE";

const app = express();

app.get("/sso/metabase", async (req, res) => {
  // Usually, you'd grab the user from the current session
  // Here it's hardcoded for demonstration purposes
  // Example:
  // const { user } = req.session;
  const user = {
    email: "rene@example.com",
    firstName: "Rene",
    lastName: "Descartes",
    group: "Customer",
  };

  if (!user) {
    console.log("no user");
    res.status(401).json({
      status: "error",
      message: "not authenticated",
    });

    return;
  }

  const token = jwt.sign(
    {
      email: user.email,
      first_name: user.firstName,
      last_name: user.lastName,
      groups: [user.group],
      exp: Math.round(Date.now() / 1000) + 60 * 10, // 10 minutes expiration
    },
    METABASE_JWT_SHARED_SECRET,
  );
  // The user backend should return a JSON object with the JWT.
  res.status(200).json({ jwt: token });
});

See more examples in the Embedding SDK docs.

3. Embeds will use SSO automatically by default

By default, Metabase uses JWT SSO, but you can specify another auth method. To turn on SSO, make sure you don’t set your configuration to apiKey or useExistingUserSession.

Components

There are different components available that enable different experiences for the end-user.

While you can use component parameters to show or hide parts of the embedded component, these parameters are not a substitute for permissions. Even if you hide stuff, people could still grab their token from the frontend and use it to query the Metabase API.

Dashboard

To render a dashboard:

<metabase-dashboard dashboard-id="1" with-title="true" with-downloads="false">
</metabase-dashboard>

Required parameters:

• dashboard-id - This can be a regular ID or an entity ID. Using Entity IDs in your embeds ensures that the IDs stay stable when exporting from one Metabase and importing to another.

Optional parameters:

• with-title (default is true) - show the dashboard title in the embed
• with-downloads (default is false) - show the button to download the dashboard as PDF and download question results
• drills (default is true) - lets you drill through the dashboard

• initial-parameters - default value for dashboard filters, like { 'productId': '42' }.

  Make sure to use single quotes if you are surrounding your attribute value with double quotes:

  <metabase-dashboard
    dashboard-id="1"
    initial-parameters="{ 'productId': '42' }"
  ></metabase-dashboard>


• hidden-parameters - list of filter names to hide from the dashboard, like ['productId']

  Make sure to use single quotes if you are surrounding your attribute value with double quotes:

  <metabase-dashboard
    dashboard-id="1"
    hidden-parameters="['productId']"
  ></metabase-dashboard>


Question

To render a question (chart).

<metabase-question question-id="1"></metabase-question>

Required parameters:

• question-id - This can be a regular ID or an entity ID. Using Entity IDs in your embeds ensures that the IDs stay stable when exporting from one Metabase and importing to another.

  Use question-id="new" to embed the query builder exploration interface.

Optional parameters:

• drills (default is true) - lets you drill through the question
• with-title (default is true) - show the title
• with-downloads (default is false) - show downloads
• initial-sql-parameters - default value for SQL parameters, only applicable to native SQL questions, like { "productId": "42" }
• is-save-enabled (default is false)
• target-collection - this is to enforce saving into a particular collection. Values: regular ID, entity ID, "personal”, "root”
