What goes in a DevSecOps dashboard in Metabase?

A DevSecOps dashboard puts security inside the delivery pipeline: scan coverage in CI, findings by pipeline stage, remediation speed by severity, secrets-scanning catches, dependency freshness, and how often security gates block a deploy. It complements the estate-wide vulnerability management view and the findings-deep AppSec findings dashboard.

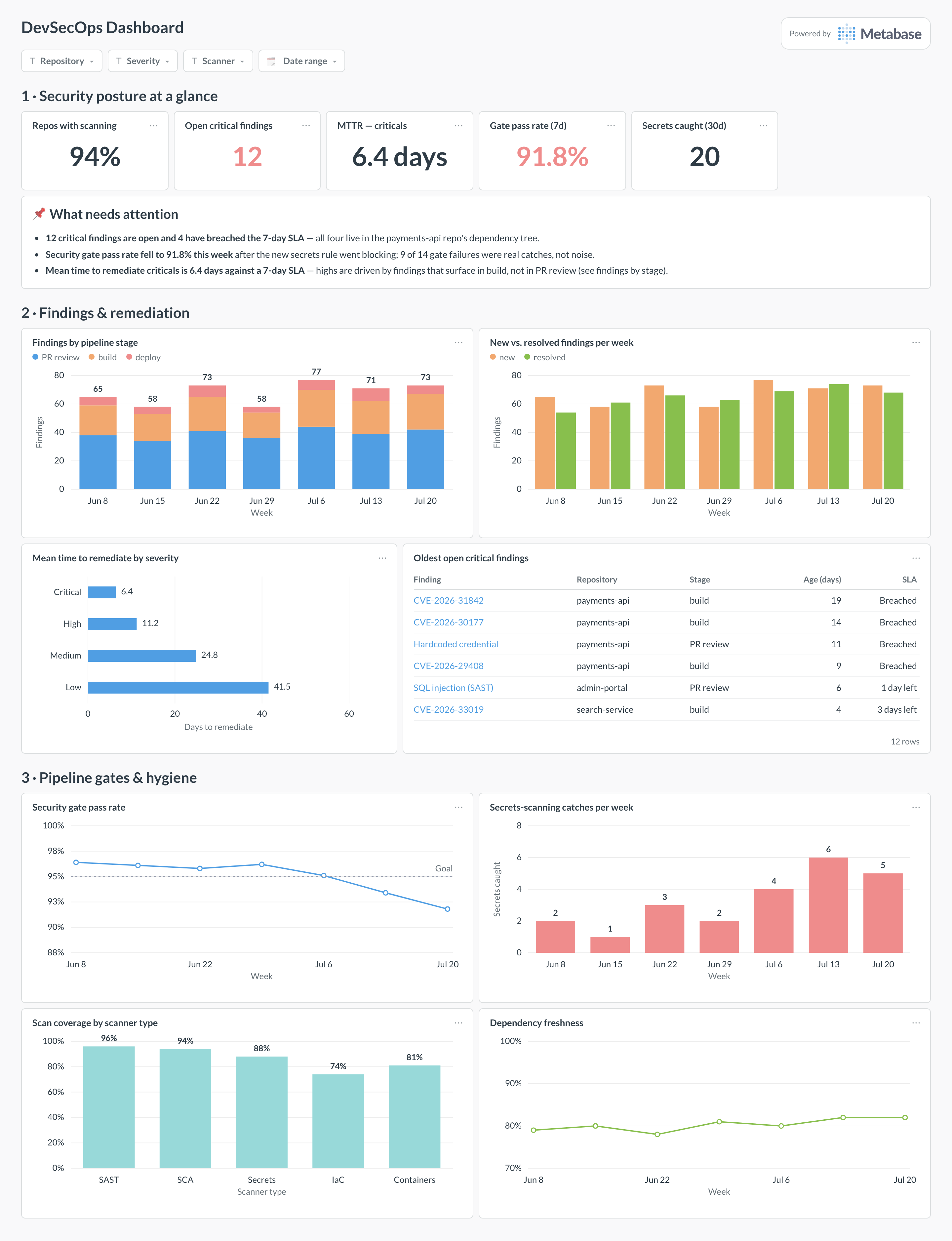

What does a DevSecOps dashboard look like?

Here’s the layout this guide builds. Posture scalars and the attention card lead, so an SLA breach is impossible to miss; findings and remediation come next — where findings surface and how fast they die; pipeline gates and hygiene close the page with the controls that stop new debt from entering.

Which cards belong on a DevSecOps dashboard?

The eight below cover the loop: what the scanners see, how fast findings get fixed, and whether the gates are holding.

• Findings by pipeline stage — PR review, build, deploy, per week (stacked bar)
• New vs. resolved findings per week (bar)
• Mean time to remediate by severity (row)
• Oldest open critical findings, with age and SLA status (table)
• Security gate pass rate, weekly with a goal line (line)
• Secrets-scanning catches per week (bar)
• Scan coverage by scanner type — SAST, SCA, secrets, IaC, containers (bar)
• Dependency freshness — share of dependencies within 90 days of latest (line)

What data does the dashboard need?

• A normalized security_findings table — severity, detected_at, resolved_at, repo, pipeline_stage, scanner, sla_interval — merged from your SAST, SCA, and container scanners.
• CI gate results per pipeline run: gate name, pass/fail, and whether the failure blocked a merge or deploy.
• Secrets-scanner events with repo, rule, and a resolved/revoked flag — counts only, never the secret material itself.
• A repo inventory with which scanner types are enabled per repo, for the coverage card.
• SCA dependency exports with pinned version, latest version, and release dates, for the freshness trend.

How do you build it?

1. Pull findings from your scanners — Snyk, Semgrep, SonarQube — into one table, deduplicating on rule + location so a finding that appears in every nightly scan counts once.
2. Tag each finding with the pipeline stage that surfaced it (PR review, build, deploy) from the CI context of the scan run.
3. Encode your SLA per severity as an sla_interval column and build the remediation model — resolved time minus detected time — that every remediation card reads.
4. Add gate results from CI check runs and the per-repo scanner inventory, then build the coverage and gate-rate cards against them.
5. Add filters for repository, severity, scanner, and date range, and alert on the two numbers that matter daily: open criticals and gate pass rate.

Example card SQL

SELECT
f.severity,
COUNT(*) FILTER (WHERE f.resolved_at IS NULL)         AS open_findings,
ROUND(AVG(
  EXTRACT(EPOCH FROM f.resolved_at - f.detected_at) / 86400
) FILTER (WHERE f.resolved_at IS NOT NULL), 1)        AS mean_days_to_remediate,
COUNT(*) FILTER (
  WHERE f.resolved_at IS NULL
    AND now() - f.detected_at > f.sla_interval
)                                                     AS open_past_sla,
ROUND(
  100.0 * COUNT(*) FILTER (
    WHERE f.resolved_at IS NOT NULL
      AND f.resolved_at - f.detected_at <= f.sla_interval
  ) / NULLIF(COUNT(*) FILTER (WHERE f.resolved_at IS NOT NULL), 0), 1
)                                                     AS remediated_within_sla_pct
FROM security_findings f
WHERE f.detected_at >= now() - interval '90 days'
GROUP BY f.severity
ORDER BY
CASE f.severity
  WHEN 'critical' THEN 1 WHEN 'high' THEN 2
  WHEN 'medium' THEN 3 ELSE 4
END;
