What goes in an IT operations dashboard in Metabase?

An IT operations dashboard is the daily command view for the team that keeps systems running: incidents opened and resolved, MTTR against its goal, change success rate, scheduled maintenance, and who is carrying the on-call load. Metabase builds it from the incident and change records you already keep in Jira, PagerDuty, or incident.io — synced to a warehouse where they can finally be joined.

What does an IT operations dashboard look like?

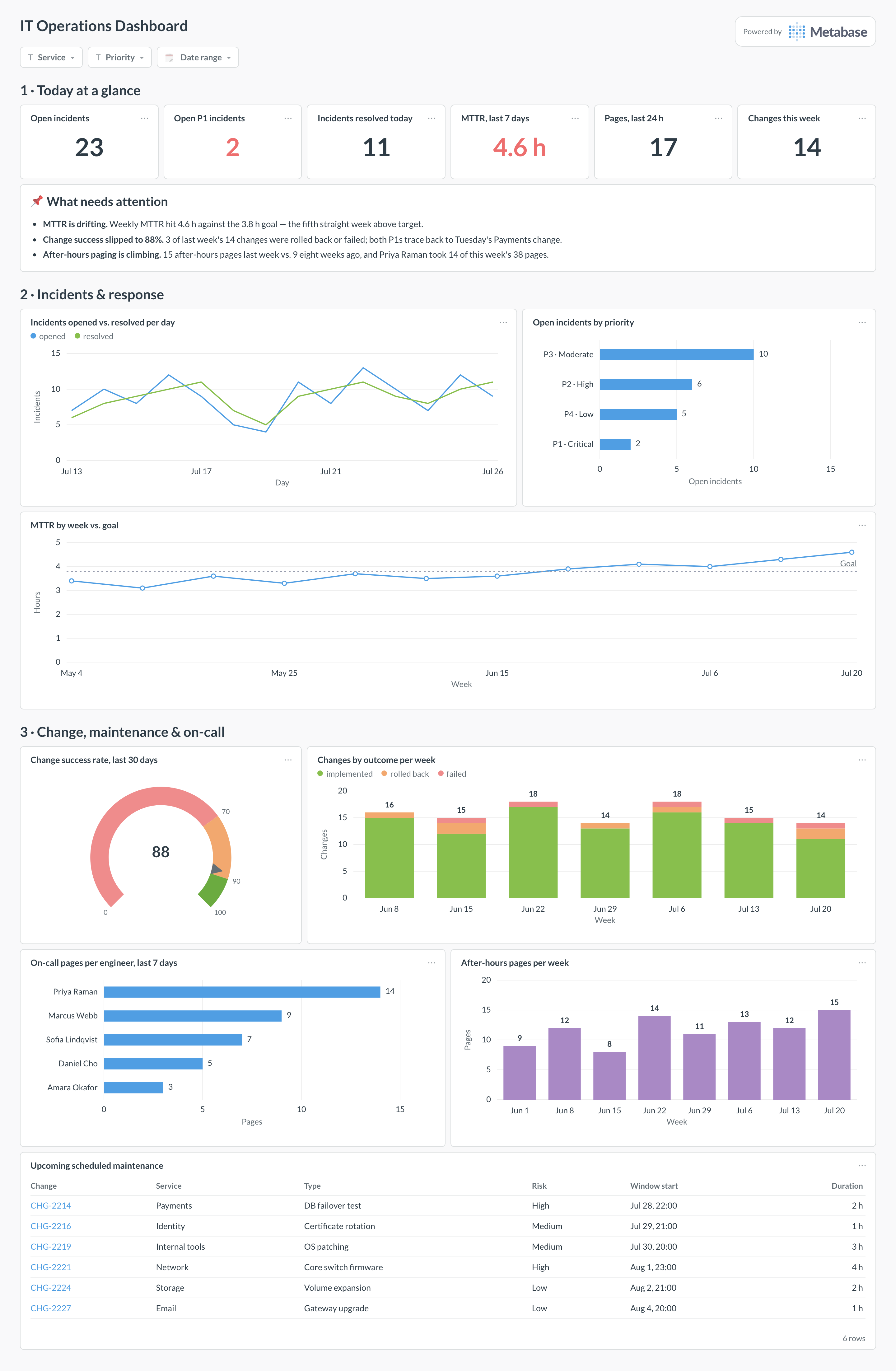

Here’s the layout this guide builds. Today’s position sits at the top — open incidents, MTTR, and paging volume — so the morning stand-up starts from one row of numbers. Incident flow and response speed come next, because that’s the work of the day; change outcomes, the maintenance calendar, and on-call load close the page for the weekly review.

Which cards belong on an IT operations dashboard?

The eight below cover the three questions an ops lead asks every morning: what’s broken, how fast are we fixing it, and what are we about to change?

• Incidents opened vs. resolved per day, past two weeks (line)
• Open incidents by priority, P1 through P4 (row)
• MTTR by week against its goal (line)
• Change success rate, past 30 days (gauge)
• Changes by outcome per week — implemented, rolled back, failed (stacked bar)
• On-call pages per engineer, past 7 days (row)
• After-hours pages per week (bar)
• Upcoming scheduled maintenance, with window and risk (table)

What data does the dashboard need?

• An incidents table: incident_id, service, priority, opened_at, acknowledged_at, resolved_at, status.
• A changes table: change_id, service, change_type, window_start, risk, and an outcome of implemented, rolled back, or failed.
• A pages table from your paging tool: page_id, engineer, triggered_at, and whether it fell inside business hours.
• A maintenance_windows table (or the subset of changes flagged as scheduled maintenance) with start, end, and affected service.
• A small services dimension so incidents, changes, and pages roll up to the same service names.

How do you build it?

1. Sync incidents, pages, and on-call schedules from PagerDuty, incident.io, or Jira into your warehouse on a schedule — the joins below need them as tables, not API calls.
2. Define MTTR once in a Metabase model: resolved_at − opened_at in hours, excluding suppressed and duplicate incidents, so every card computes response time identically.
3. Build the change-outcome cards from the changes table, counting a change as failed if it was rolled back or caused an incident within 24 hours of its window.
4. Join pages to the on-call schedule to attribute each page to the engineer who received it, then split by business hours for the after-hours trend.
5. Add dashboard filters for service, priority, and date range, and set a 60-second auto-refresh on the copy that runs on the NOC display.

Example card SQL

WITH opened AS (
SELECT
  i.opened_at::date            AS day,
  COUNT(*)                     AS incidents_opened
FROM incidents i
GROUP BY 1
),
resolved AS (
SELECT
  i.resolved_at::date          AS day,
  COUNT(*)                     AS incidents_resolved,
  AVG(
    EXTRACT(EPOCH FROM i.resolved_at - i.opened_at) / 3600
  )                            AS mttr_hours
FROM incidents i
WHERE i.resolved_at IS NOT NULL
  AND i.status <> 'suppressed'
GROUP BY 1
)
SELECT
COALESCE(o.day, r.day)                 AS day,
COALESCE(o.incidents_opened, 0)        AS incidents_opened,
COALESCE(r.incidents_resolved, 0)      AS incidents_resolved,
ROUND(r.mttr_hours::numeric, 1)        AS mttr_hours
FROM opened o
FULL JOIN resolved r ON r.day = o.day
WHERE COALESCE(o.day, r.day) >= CURRENT_DATE - 30
ORDER BY 1;
