Custom expressions

When you should use custom expressions and why you should take advantage of them in Metabase's notebook editor.

In mathematics, expressions are collections of symbols that together express a value. If you’ve ever worked with spreadsheet software before, expressions are formulas, like =SUM(A1, B1).

Custom expressions in Metabase’s query builder are powerful tools that can cover the vast majority of analytics use cases without the need to take SQL out of the toolbox. In fact, there are big advantages to using the query builder that you don’t get when you use SQL:

• Extensibility: Using the query builder to build queries allows people to learn from and build on your questions without needing to know any SQL.
• Drill-through allows people to break out records by category, zoom in, drill down to unaggregated records, or x-ray the data on click. Questions built with the Metabase query builder will give users the full power of drill-through, but questions built using SQL will only show limited options like filtering by a value.

And you can always switch to SQL at any point during your development by converting an existing question to a native SQL question.

There are three places in the query builder where we can use custom expressions:

• Custom columns use functions to compute values (like + to add numbers) or manipulate text (like lower to change text to lowercase).
• Custom filters use functions like contains that evaluate to either true or false.
• Custom summaries use functions like count or sum to aggregate records.

Custom columns

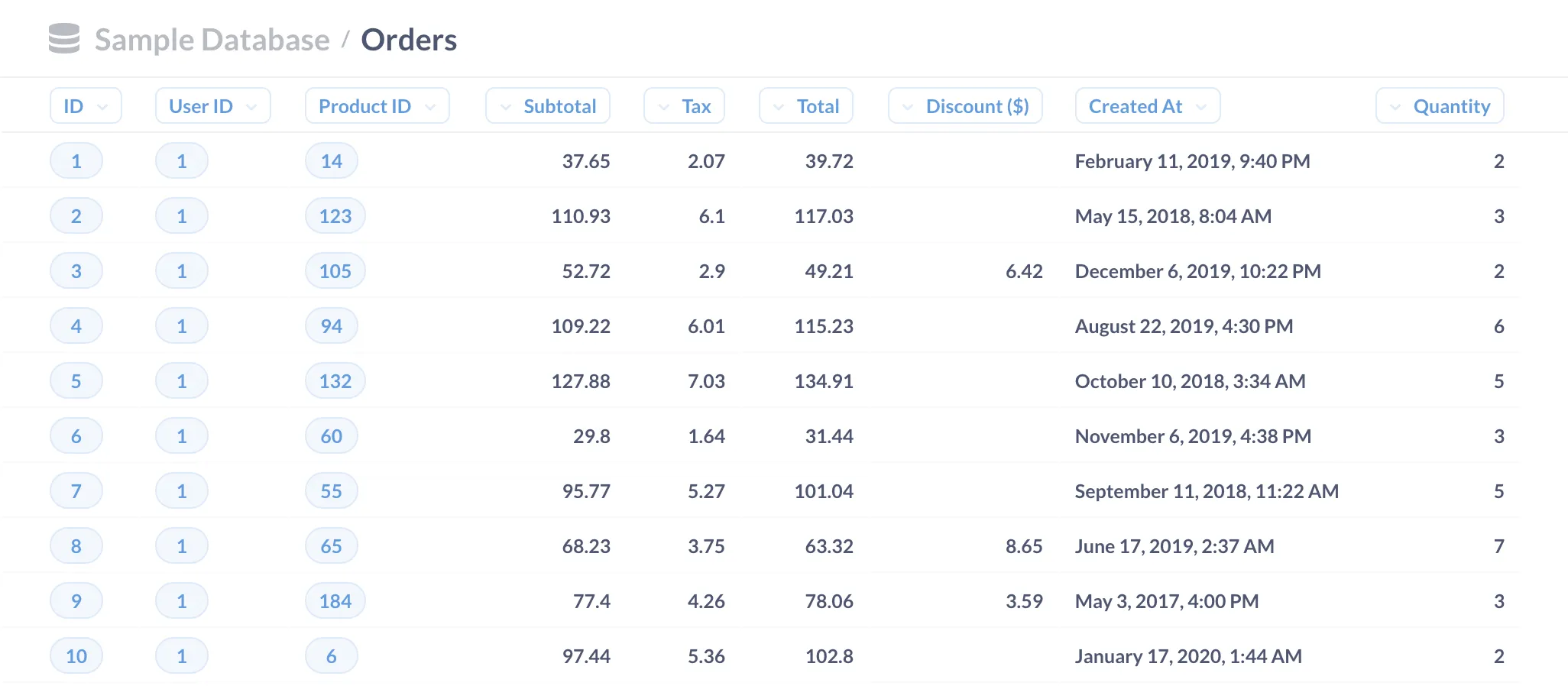

We can add a custom column to our data using an expression to compute a new column. Let’s see an expression in action. Here is the Orders table from the Sample database included with Metabase.

Let’s say we want to know the discount percentage applied to orders based on the pre-tax subtotal. For example, if we gave a $1 discount on a $10 order, we’d want to see a column show that we had discounted that order by 10%.

Unfortunately, a quick scan of the columns in the preview tells us that the database does not store that computation (i.e. there is no “discount percentage” column). We only have the subtotal of the order, and the discount total.

Thanks to math, however, we can use the discount total and order subtotal to compute the percentage. Here’s where expressions come into play: we can use an expression to compute the discount percentage for each row, and store that computed value in a new column.

Let’s walk through how to create a custom column.

When in the query builder, we select Custom column in the Data section.

To calculate the discount percentage, we’ll need we’ll need to divide the discount by the original total (the Subtotal) to get the discount percentage.

In expressions, we reference columns using brackets. For example, we can refer to the Discount column in the Orders table as [Discount]. If we need to reference a column from another table linked by a foreign key, we can use a . between the table and the column, as in [Table.Column] (alternatively you can select [Table → Column] from the dropdown menu that appears when you type an open bracket ([). For example, we could enter [Products.Category] which will resolve to: [Products → Category].

For now, we’re just interested in columns in the Orders table, so there’s no need to reference another table. Here’s the expression (or formula), we’ll use to compute our custom discount percentage column:

= [Discount] / [Subtotal]

Enter that expression in the Expression field, then give the new column a name: Discount percentage.

Click done, then click the Visualization button to see your new column.

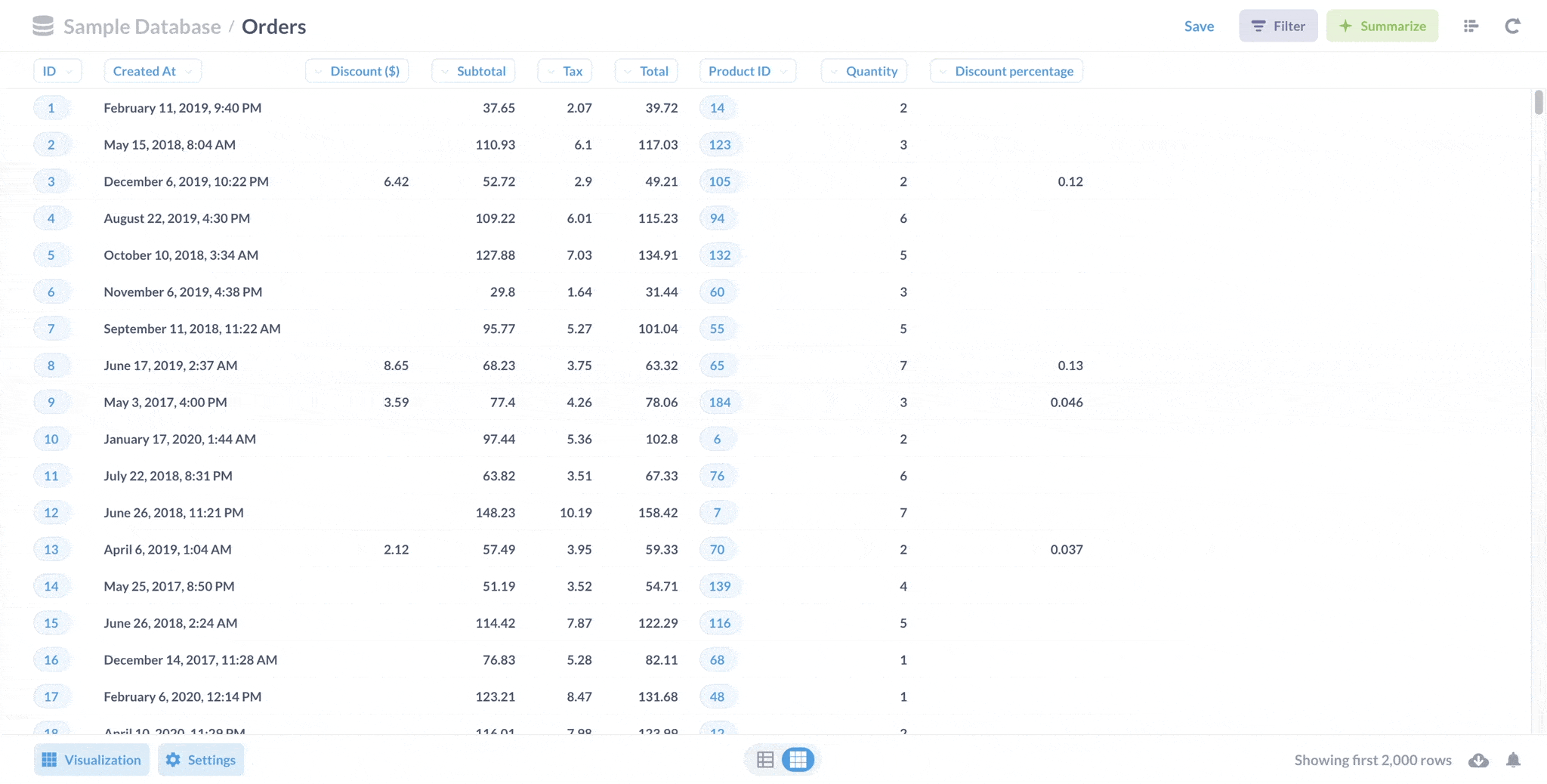

Since the value in our new Discount percentage column concerns discounts, let’s move the column next to the Discount column. You can move columns around on tables by clicking on the column header and dragging the column to your target location, like so:

Since we’re computing a percentage, let’s fix the formatting so it’s easier to read. Click on the Discount percentage heading to bring up the Action Menu for the column, then click on the gears icon to format the column.

Metabase will slide out a Formatting sidebar with options. Let’s change the style to Percent, and bump up the number of decimal places to 2. And since the title Discount percentage takes up a lot of space, let’s rename the column to Discount %.

There’s an option to add a mini bar chart as well. This bar chart won’t show the percentage with respect to 100%; instead the mini bar chart will show us the discount percentage relative to the discount percentage given to other orders. Let’s leave the mini bar chart off for now.

Here’s the finished question with the added Discount % column:

Custom filters

Metabase comes with a lot of filtering options out of the box, but you can design more sophisticated filters using custom filter expressions. These are particularly useful for creating filters that use OR statements, and that’s what we’ll be covering here.

Normally in the query builder, when we add multiple filters to our question, Metabase implicitly combines the filters with an AND operator. For example, if we add a filter for products that start with Enormous and a filter for products that ends with Computer, our question will only return products that both start with Enormous AND end with Computer, which do not exist in Metabase’s Sample Database.

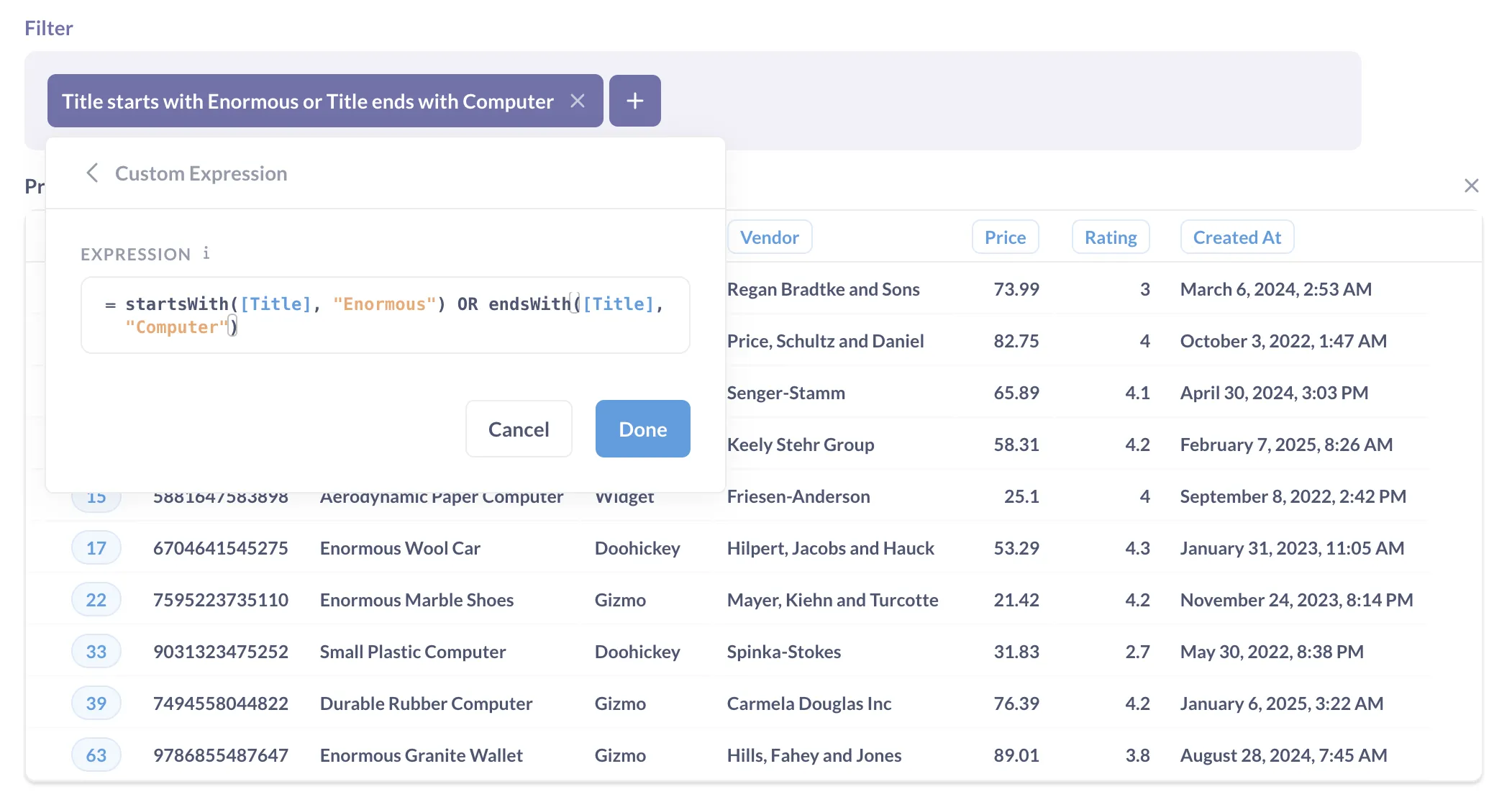

To filter for products that either start with Enormous OR end with Computer, we’ll select Custom Expression from the Filter dropdown, and use the startsWith and endsWith functions:

startsWith(string1, string2)
endsWith(string1, string2)

Functions startsWith and endsWith check to see if string1 starts with/ends with string2. So string1 is the string to check (the haystack), and string2 is the text to look for (the needle). And since we want to look for products that either start with Enormous OR end with Computer, we can use startsWith and endsWith expressions with an OR operator in between:

= startsWith([Title], "Enormous") OR endsWith([Title], "Computer")

The resulting data set will contain products that either start with Enormous or end with Computer:

Note that custom filter expressions must always resolve to either true or false. You can, however, nest expressions that do not resolve to true or false within statements, like:

= contains(concat([First Name], [Last Name]), "Wizard")

because the outermost function (contains) resolves to either true or false. Whereas you couldn’t use concat([First Name], [Last Name]) as a filter, as it would resolve to a string of text (though you could use concat to create a custom column like Full Name).

Custom summaries

Custom expressions unlock many different ways to aggregate our data. Let’s consider the Share function, which returns the percent of rows in the data that match the condition, as a decimal. For example, say we want to know the total percentage of paper products in our product line, i.e. what share of our product line is composed of paper products?

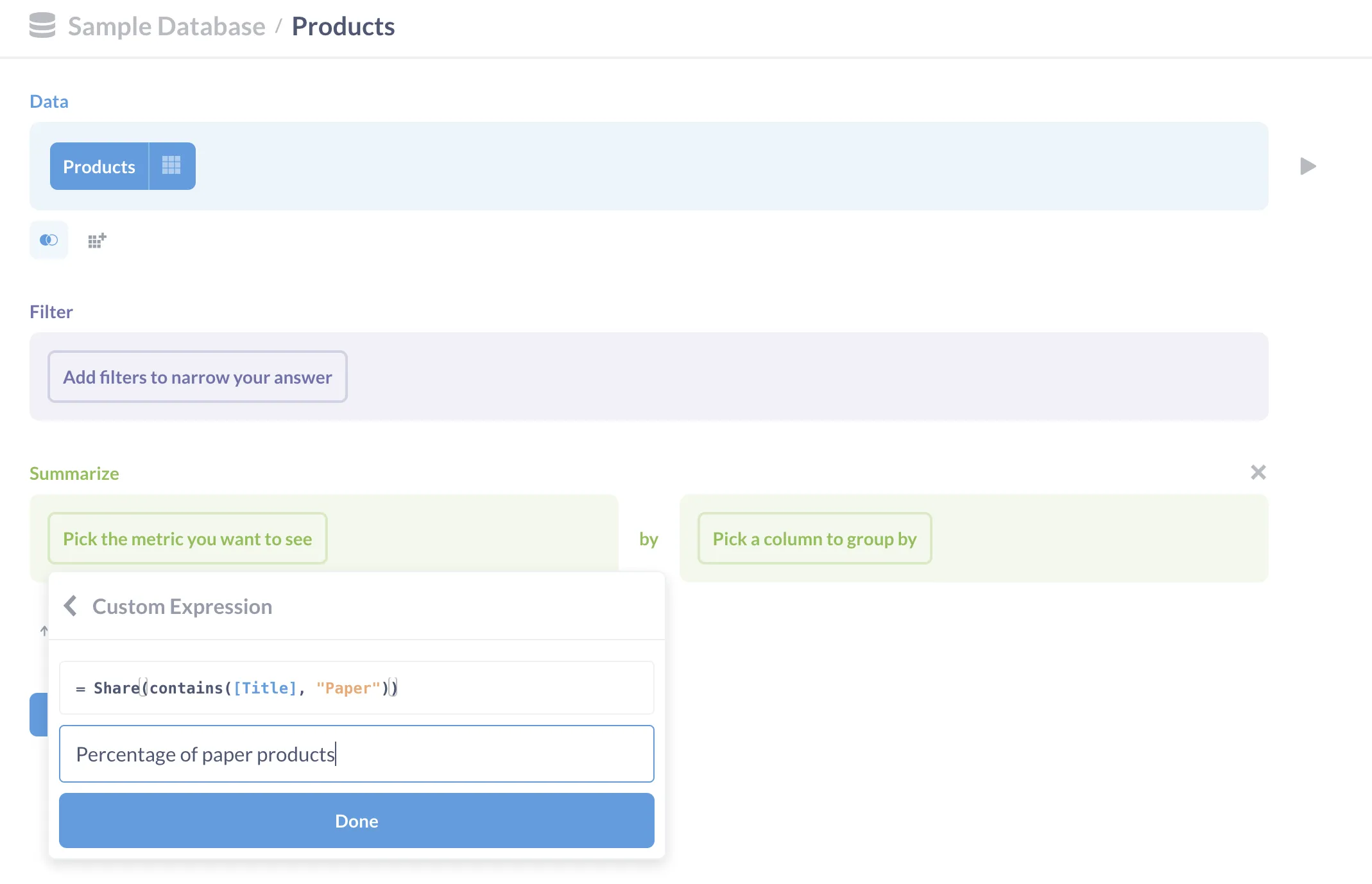

To start, we’ll select the Products table from the Sample Database. Next, we’ll click the Summarize button in the query builder and select Custom Expression. Then, we’ll select Share from the dropdown menu, which will prompt us for a condition. In this case, we want to know which products have “Paper” in their title, so we’ll use the contains function to search through Title.

= Share(contains([Title], "Paper"))

Then we name our expression (e.g., Percentage of paper products) and click Done. Click the Visualize button and Metabase will compute the share of paper products.

To change the formatting, select the Settings button in the bottom-left to bring up the Settings sidebar and change Number options → Style to Percent.

Putting it all together

Let’s create a fairly complex (contrived) question using expressions. Say we’ve been tasked to find the average net inflow for wool and cotton products by month in 2019, with net inflow being the selling price minus the cost we paid for the product. In other words: for each wool and cotton product unit sold, how much money on average did we make (or lose) per unit each month in 2019?

To the get these fascinating numbers, we’ll need to use expressions to:

• Compute the selling price per unit (custom column).
• Filter results to only include wool or cotton products (custom filter), and limit those results to 2019.
• Compute the average net inflow (custom summary), and group by month.

Let’s go:

1. We create a custom column named Unit price. To compute the Unit price, we’ll use an expression to divide the subtotal by the number of units sold (Quantity):

   = [Subtotal] / [Quantity]


2. Next, we’ll use a custom filter expression to filter for orders of Wool and Cotton products (i.e. for products that contain “Wool” or “Cotton” somewhere in their Product.Title).

   = contains([Products → Title], "Wool") OR contains([Products → Title], "Cotton")


3. We’ll also filter for orders between 01/01/2019 and 12/31/2019.

4. We’ll use a custom expression to create a custom summary. Let’s assume the standard retail markup of 50% (the keystone markup). So if the Product.Price is $2, we’ll assume the product cost us $1 to acquire per unit. Given this assumption, we can simply define net inflow per unit sold to be the Unit price minus half of the Product.Price. Then we’ll summarize that data by taking the average of those numbers for each order.

   = Average([Unit price] - [Products → Price] / 2)


5. Lastly, we’ll group those orders by Orders.Created_At by month.

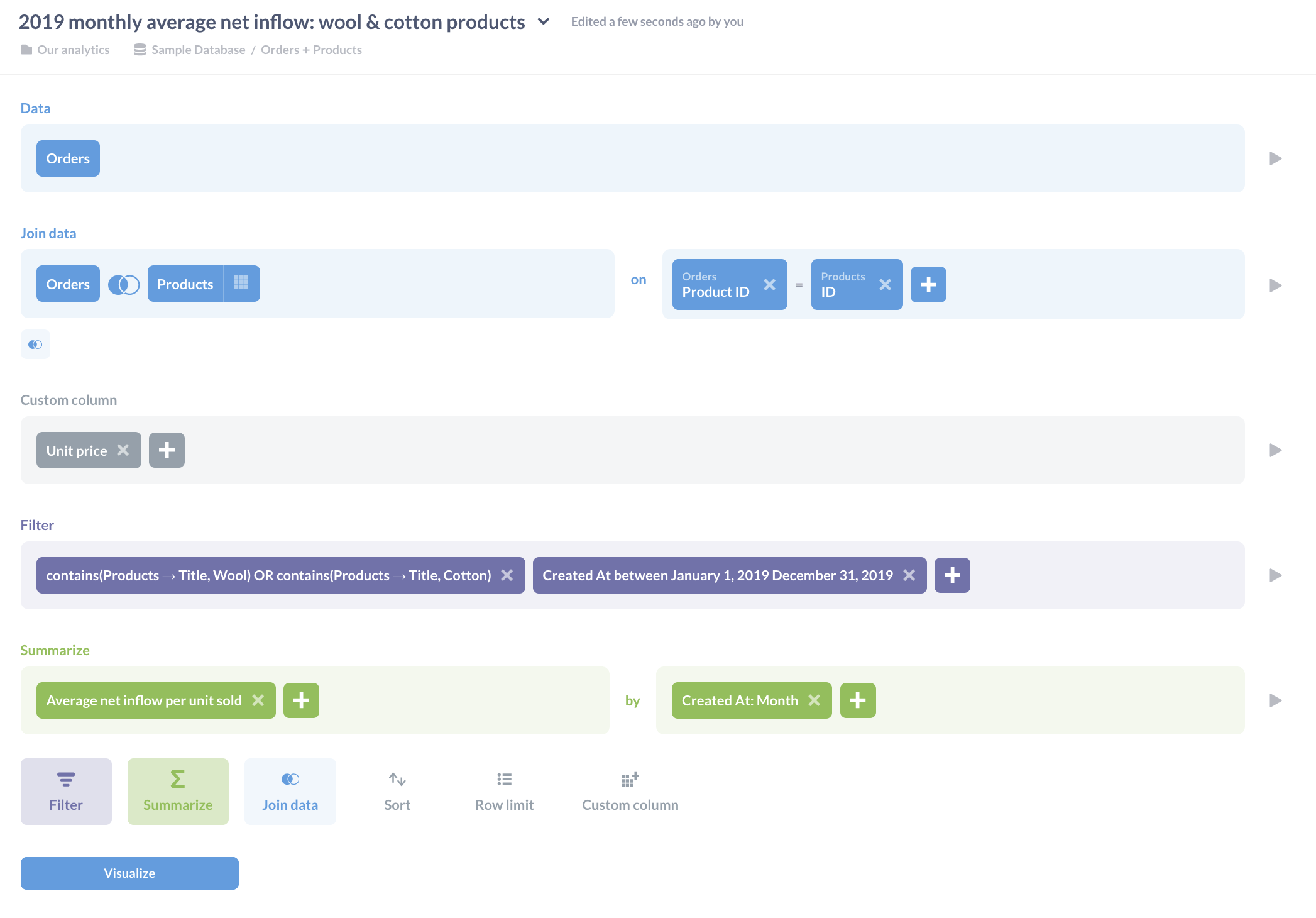

Here’s our notebook:

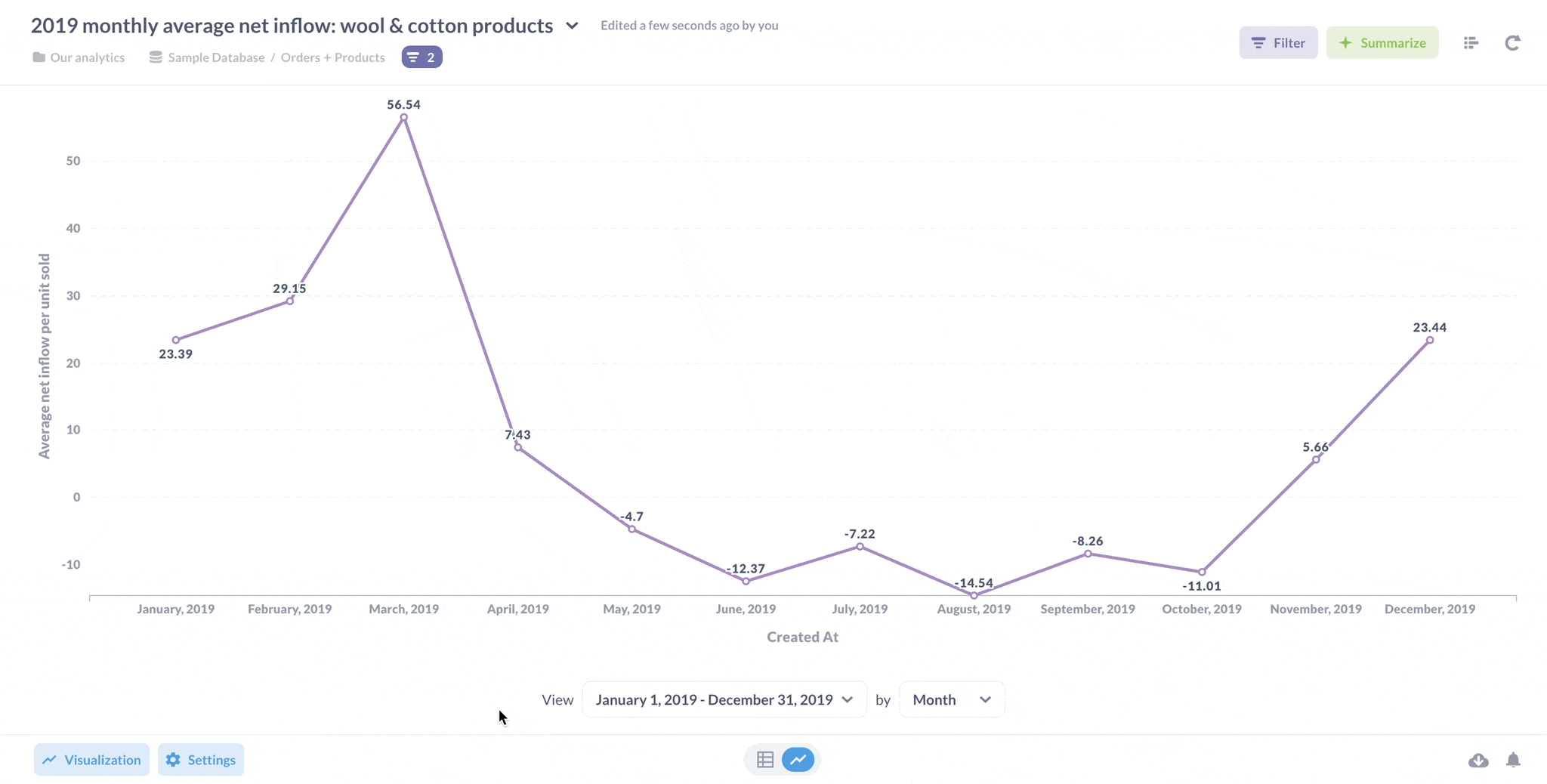

We’ll choose to visualize our data as a line chart, which we can click on to drill through our data:

Further reading

• Docs: Custom expressions in the query builder. There are a lot more functions that you can use in expressions that we didn’t cover, so check out the docs for the full list of functions.
• Time series comparisons shows how to use custom expressions to visualize and compare time series.
• Cleaning and formatting text uses custom expressions to deal with messy and missing data.
