Measures and dimensions

How to work with quantitative and qualitative fields in your queries.

As we covered in our overview, a typical database is made up of tables, comprised of rows and columns. Based on their data type, those columns (or fields) contain either qualitative or quantitative information. Dimensions and measures are concepts that help us differentiate what sort of values are stored in a field, and in turn dictate what we can do with those fields.

Looking at your data in table form will only get you so far; at some point you’ll need to run queries or execute operations that make your data more useful, like showing you patterns about the information stored in certain fields. This is where measures and dimensions come in.

Dimensions: the who, what, where, and when of your data

Fields that contain qualitative information are dimensions. These are descriptive attributes, like a product category, customer address, or country. Dimensions can contain numeric characters (like an alphanumeric customer ID), but are not numeric values (It wouldn’t make sense to add up all the ID numbers in a column, for example).

Date fields are dimensions too, as it probably wouldn’t helpful to calculate the sum of all years in which orders were placed. Instead, you’d likely want to group according to date. A date field is a dimension, but a duration field wouldn’t be; there are valuable computations you can do with a duration field, like calculating the average amount of time in seconds that a person spends on your website.

Think of it this way: if you can’t (or wouldn’t) compute a field, it’s a dimension. Numbers alone only tell part of the story, dimensions describe and add context.

Let’s look at Metabase’s Sample Database. If we select Browse Data and then the Products table, we’re presented with information about our products in table form. This table contains eight columns.

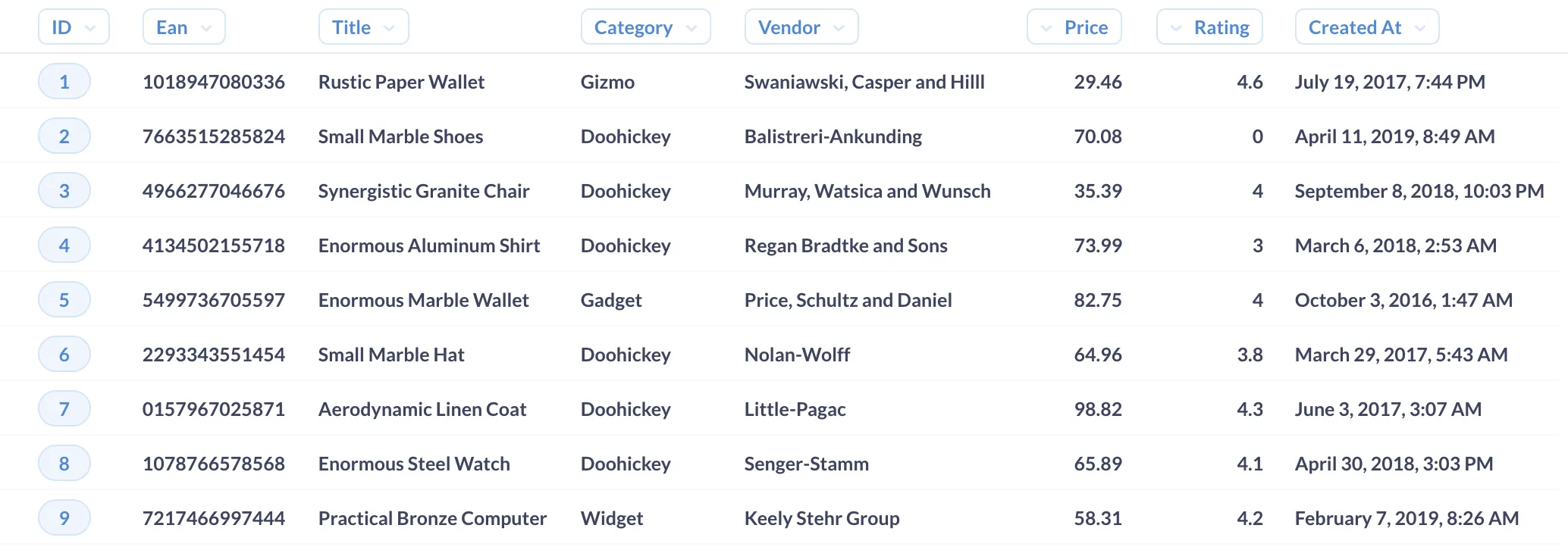

The Sample Database

To determine which of these fields are dimensions, consider which provide descriptive information about our products. We’ll immediately notice that Title, Category, and Vendor are qualitative, in that they tell us something in words about our products. While they contain numbers, ID, Ean, and Created At are dimensions too, since those numbers aren’t ones you’d want to compute.

Measures: numerical fields that you can compute

Measures are quantifications — fields like order subtotal, quantity of items purchased, or duration spent on a specific page. Measures are therefore computable. Say you have a measure, quantity of items purchased: you can do things like calculate the average quantity ordered, sort by descending quantities, sum all quantities, and so on.

Let’s look at the Products table again to determine which fields are measures. This is an easy one, as we’ve already figured that six of them are dimensions. That leaves us with Price and Rating, which makes sense, since calculating these fields could be valuable to our business. For example, we could compute the average rating that customers give our products.

At this point we’ve examined each field in this table, and determined which are dimensions and which are measures:

Dimensions

  • ID
  • Ean
  • Title
  • Category
  • Vendor
  • Created At

Measures

  • Price
  • Rating

Using measures and dimensions in Metabase

When asking questons in Metabase, you can choose to summarize your data, filter it, or both.

Summarizing by metric and group

The summarize function lets us ask for an encapsulation of our data according to some specific parameters, usually both a measure and dimension. Maybe we want to see the average price of products, broken out by category. As we established above, the Price field is our measure, while Category is a dimension.

Summarizing the average price of products according to their category.

In short: if you’re summarizing by a specific metric, the field you’re choosing is a measure. If you summarize by a group, that field is usually a dimension. A metric, universally-speaking, refers to the type of quantitative operation you’re performing on a given measure. They’re the “how” of these summaries, whether that’s an average, a standard deviation, or number of distinct values.

Metrics in Metabase refer to saved computed numbers that you and your team want to use again and again. Admins can create and edit metrics so you don’t have to recreate a calculated value like revenue every time you need to draw on revenue for a query.

Even though grouping typically involves dimension fields, you can group by measure. If you do, Metabase will automatically divide those numerical values into bins that make the grouping more useful. We’ve grouped the Products table according to price (our measure), and Metabase bins those prices for us:

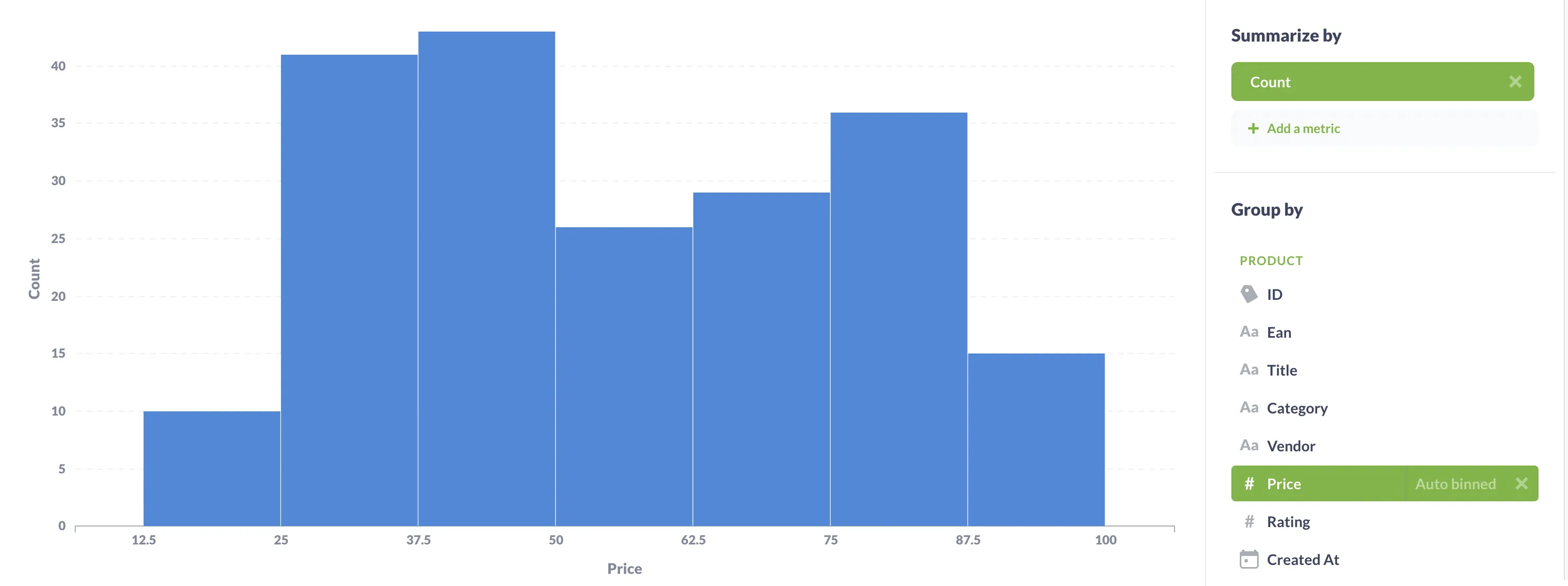

When grouping by a measure like price, Metabase automatically bins the results.

Filtering measures and dimensions

You can filter your data according to either measures or dimensions in Metabase. Filters limit the results of your query according to a specific field. We’ve decided to filter the Products table, requesting that Metabase show us products that have a category other than Gizmo, with a price greater than $50. In this query, we’ve filtered according to both a dimension and a measure.

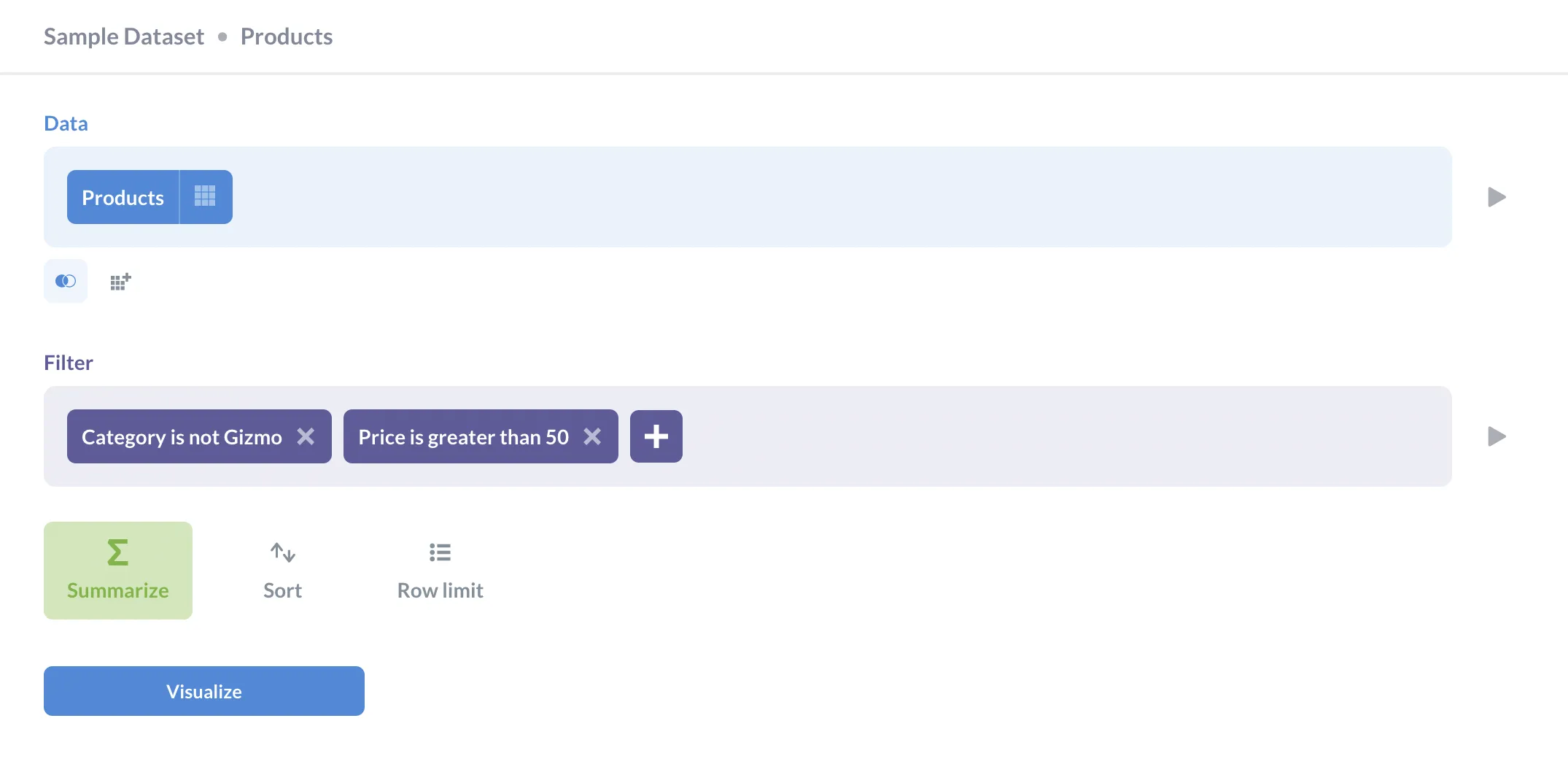

Filtering products by category and price.

In Metabase, segments are named filters that admins can create and save to be reused and referenced by all Metabase users within an organization. Segments encourage standardization and consistency for data analysis across teams; for example, you as an admin may create a segment that officially defines a certain group of customers or products.
